IronDeer Gravel Frameset, Size S

This is the frameset behind our IronDeer Gravel rental bikes. We ride it every week on the Silver Coast: sandy coastal tracks, vineyard farm roads, limestone climbs above Nazaré and the tarmac in between.

It is built to race. The frame and fork are UCI approved, so the bike is eligible for UCI-sanctioned events, and the carbon layup, T47 bottom bracket and integrated cockpit keep it stiff and light. Rack and fender mounts mean the same frame can also carry you through the rest of the week.

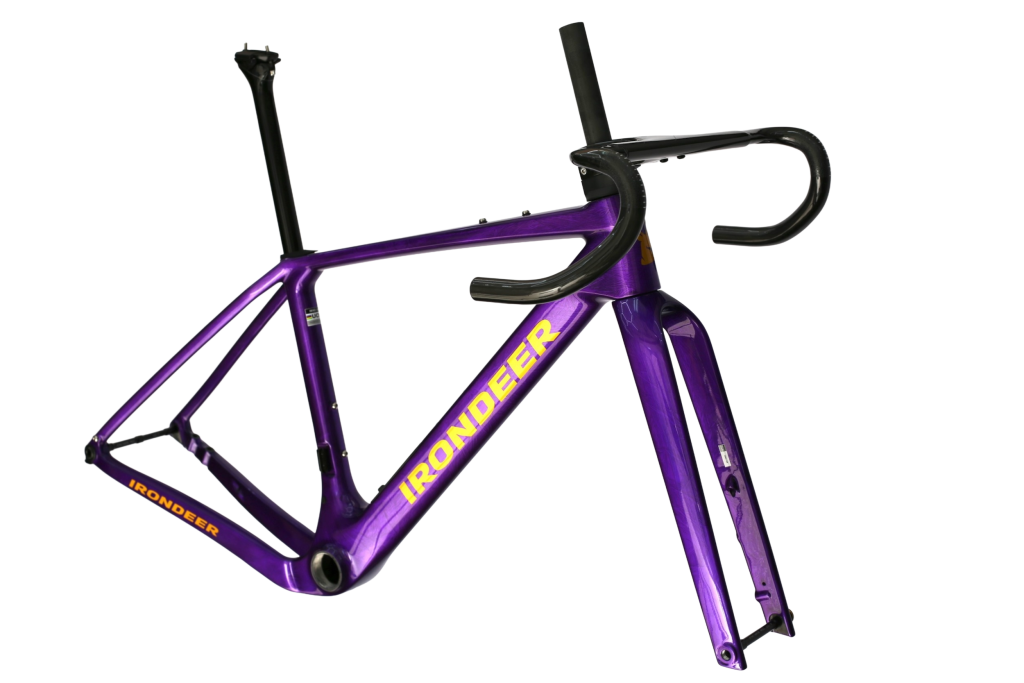

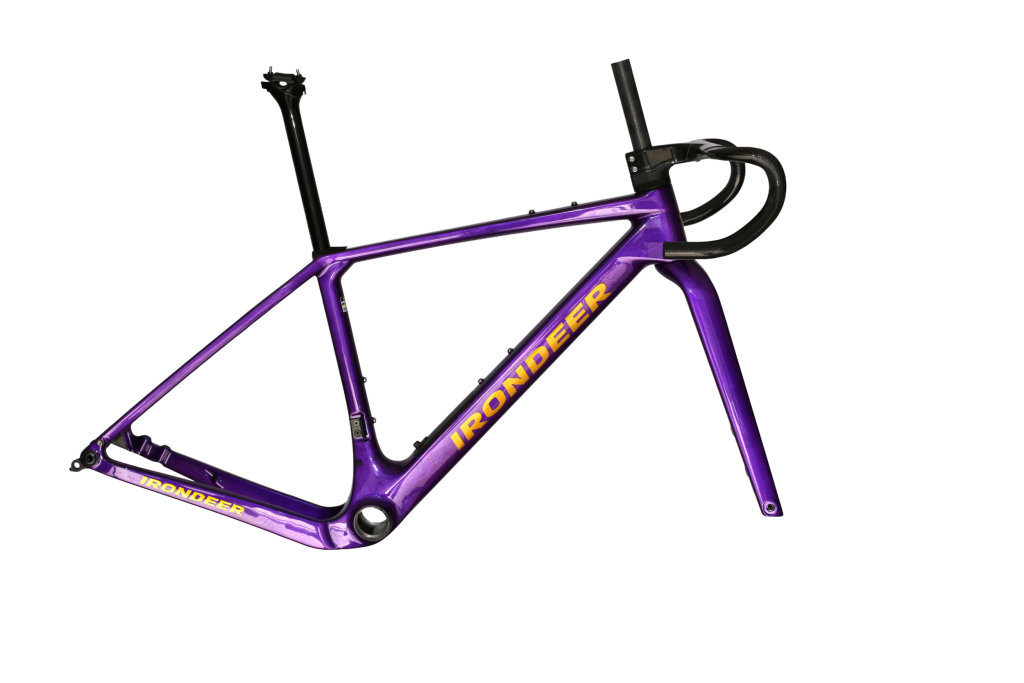

You get the frame and fork with a UDH hanger and fully internal routing, plus an integrated carbon cockpit and a carbon seatpost. You choose the groupset, wheels, tyres and saddle, and we build it for free in our Nazaré workshop.

Who it is for

• Gravel racers who need a UCI-approved frame on tyres up to 50 mm.

• Riders training fast and riding long days on mixed surfaces.

• Riders who want one frame for race day and, with a rack and fenders fitted, for bikepacking or the daily ride.

• Riders who already own parts they want to move to a carbon frame, and want it serviced in Portugal.

Who it is not for

• Riders looking for a complete bike off the shelf: rent one or ask us about a full build instead.

• Riders who need tyres wider than 50 mm for rough, MTB-style terrain.

• Riders outside roughly 163 to 175 cm: other sizes have their own pages in our shop.

At a glance

• Frame and fork: full carbon, Toray T700/T800, UCI approved

• Size: S, for riders 163–175 cm

• Frameset weight: 2470 g with fork, integrated bar and stem, seatpost, spacers, thru-axles and headset bearings

• Component weights: frame 1258 g, fork 446 g (uncut steerer), bar and stem 395 g, seatpost 196 g

• Tyre clearance: up to 700 x 50 mm

• Drivetrain: 1x or 2x, mechanical or electronic

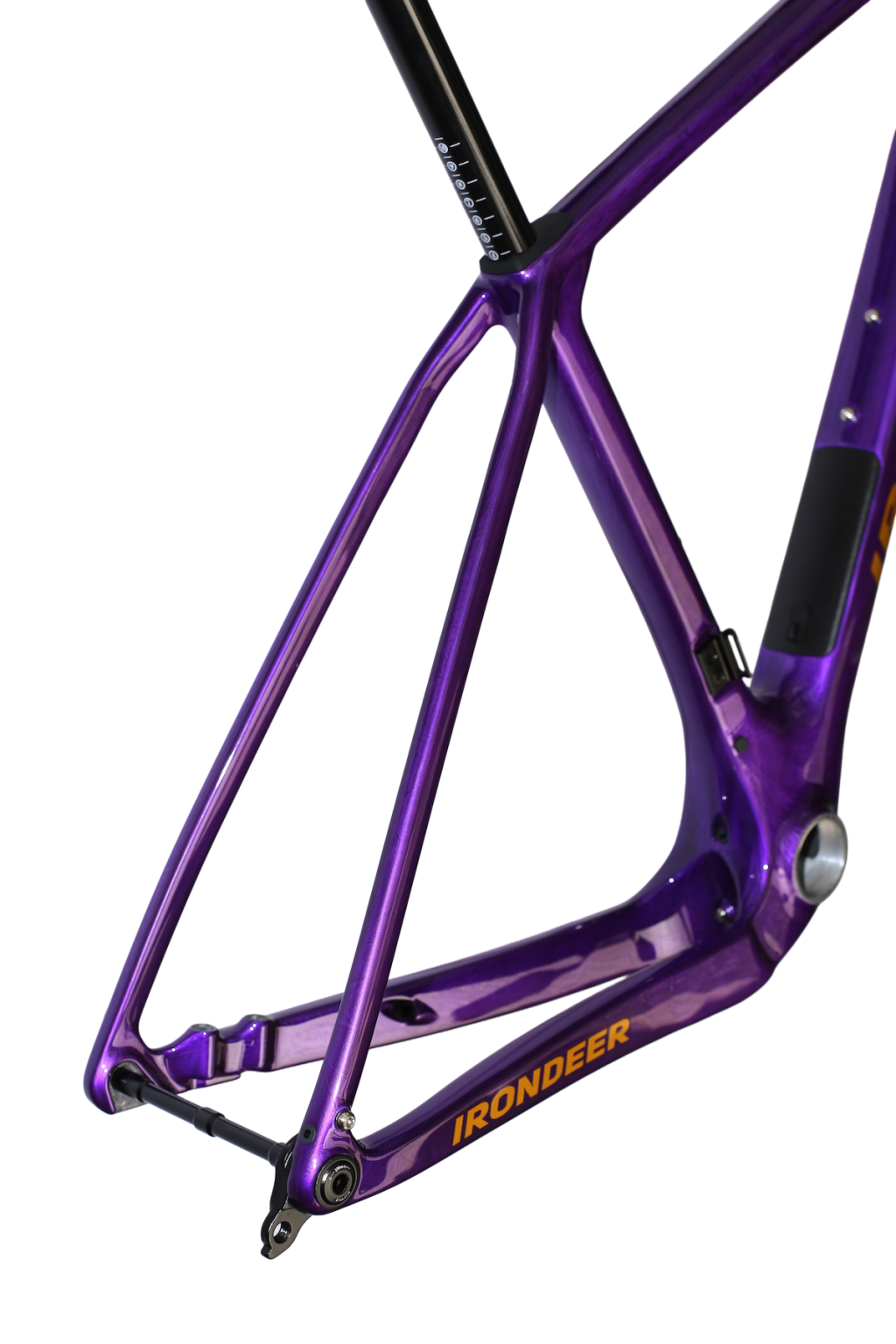

• Standards: T47 bottom bracket, UDH, 27.2 mm seatpost, flat mount brakes with 160 mm rotors, internal routing for the rear brake and both derailleurs

• Mounts: two bottle cages, rack and fenders

• Storage: in-frame "Lock" compartment for a spare tube and tools

• Build: free in our Nazaré workshop

• Price: €1,200

This size is built around a 380 mm reach and a 532 mm stack, with a 70° head angle, 425 mm chainstays and a 1016 mm wheelbase. Lower the stem for a race position or run it higher with the spacers for long days; the uncut steerer leaves both options open.

Recommended rider height: 163 to 175 cm. Riders of 160 to 162 cm may also fit, depending on inseam and riding position.

Each size has its own page in our shop, with its own geometry. Not sure which one fits? Rent the complete IronDeer Gravel in Nazaré and ride it before you order.

Geometry

• Reach: 380 mm

• Stack: 532 mm

• Top tube (effective): 522 mm

• Seat tube length: 410 mm

• Seat tube angle: 73.5°

• Head tube length: 110 mm

• Head tube angle: 70°

• Chainstay length: 425 mm

• BB drop: 78 mm

• Fork length (axle to crown): 392 mm

• Fork offset: 50 mm

• Front centre: 604 mm

• Wheelbase: 1016 mm

• Standover: 735 mm

Drivetrain

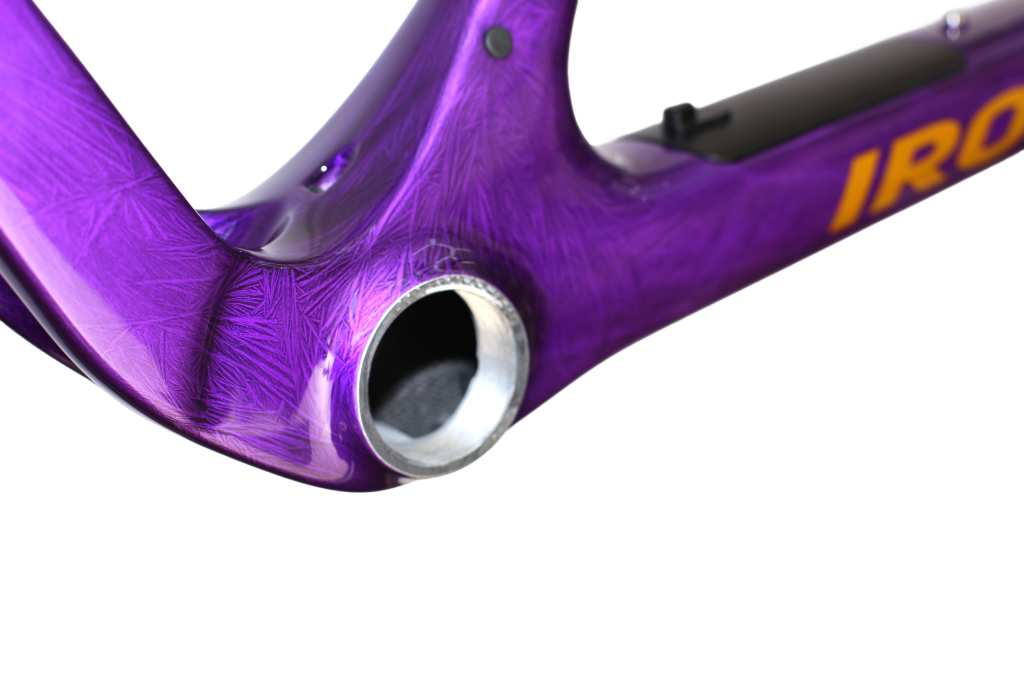

The T47 threaded bottom bracket and UDH hanger take current Shimano GRX and SRAM gravel groupsets, including SRAM Transmission direct-mount rear derailleurs. The frame runs 1x or 2x, with an integrated front derailleur mount, and works with mechanical and electronic groupsets such as Shimano Di2 and SRAM AXS.

Brakes

Hydraulic disc, flat mount front and rear. Designed for 160 mm rotors front and rear, with room for rotors up to 180 mm.

Wheels and tyres

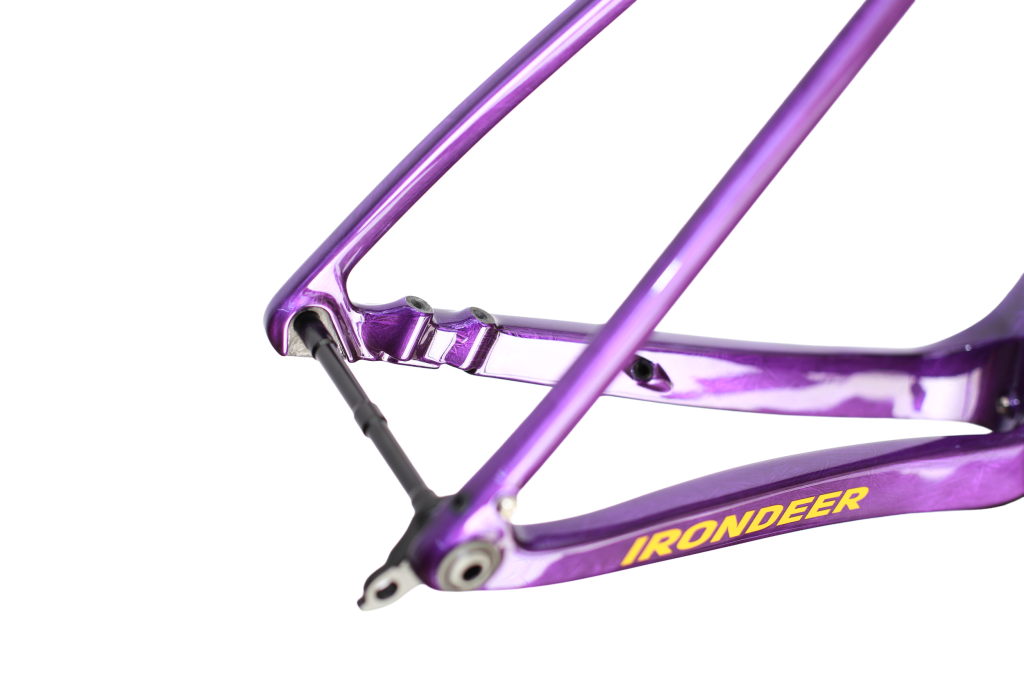

Thru-axles: 12 x 100 mm front, 12 x 142 mm rear. Maximum tyre: 700 x 50 mm. Our rental bikes run 700 x 40 mm on the Silver Coast, which leaves room to go wider for sand and loose limestone.

Frame interfaces

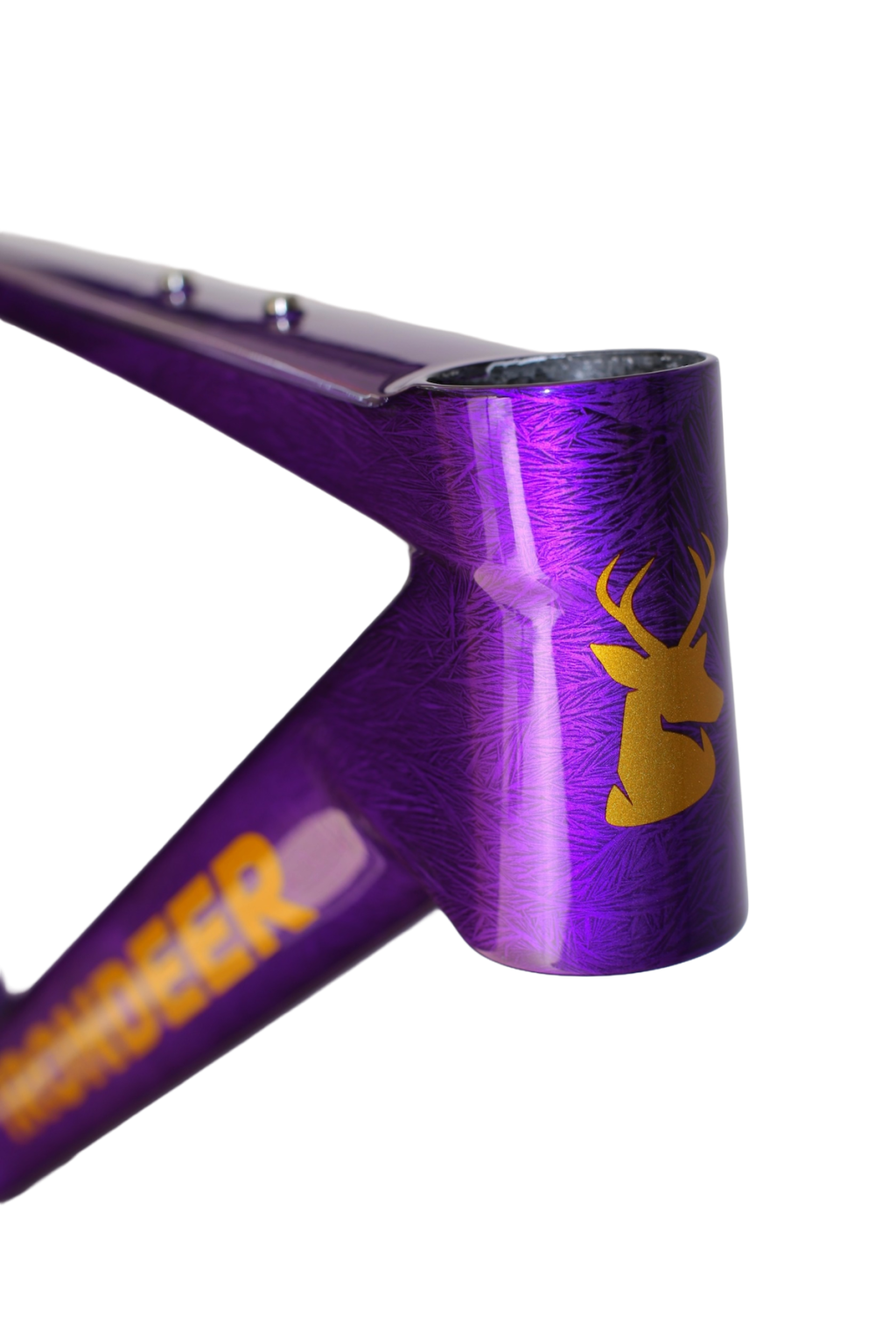

• Headset: top and bottom bearings included

• Steerer: uncut, 28.6 mm (1 1/8")

• Cockpit: integrated carbon bar and stem, 400 x 90 mm

• Seatpost: 27.2 mm round

• Brakes: flat mount, 160 mm rotors, up to 180 mm

• Routing: fully internal for the rear brake, front and rear derailleur

• Front derailleur: integrated mount, for 2x setups

• Mounts: two bottle cages, rack and fenders

• Storage: in-frame compartment for a spare tube and tools

• Maximum system weight: 120 kg, rider and bike

Free build in Nazaré

Buy the frameset and our workshop builds it for free. We cut the steerer to your stack, route the cables, set up the cockpit to your fit and torque everything to spec. The build takes 3 to 4 hours, so you ride away the same day.

Bring your own parts or choose them with us. To keep it a same-day build, all parts need to be in the workshop on the build day, new or in good working order, and compatible with the frame. If something is missing or needs replacing, we will quote it before we start.

Two starting points:

• Everyday gravel: Shimano GRX 1x, the setup on our rental fleet. Parts quoted to your choice.

• Race build: SRAM AXS with IRONDEER G50 SL wheels. Price on request.

Choosing wheels: read our Elitewheels G42 vs G50 CS real-world comparison.

Ride the complete bike first

The IronDeer Gravel is in our rental fleet in Nazaré, from €40 for 4 hours or €50 a day. Take it over the same mix of sand, farm roads and climbs you ride at home, then decide.

Buy the frameset within 30 days of your rental and we deduct the rental fee from the price.

You can also see the frameset in person at our shop in Nazaré.
