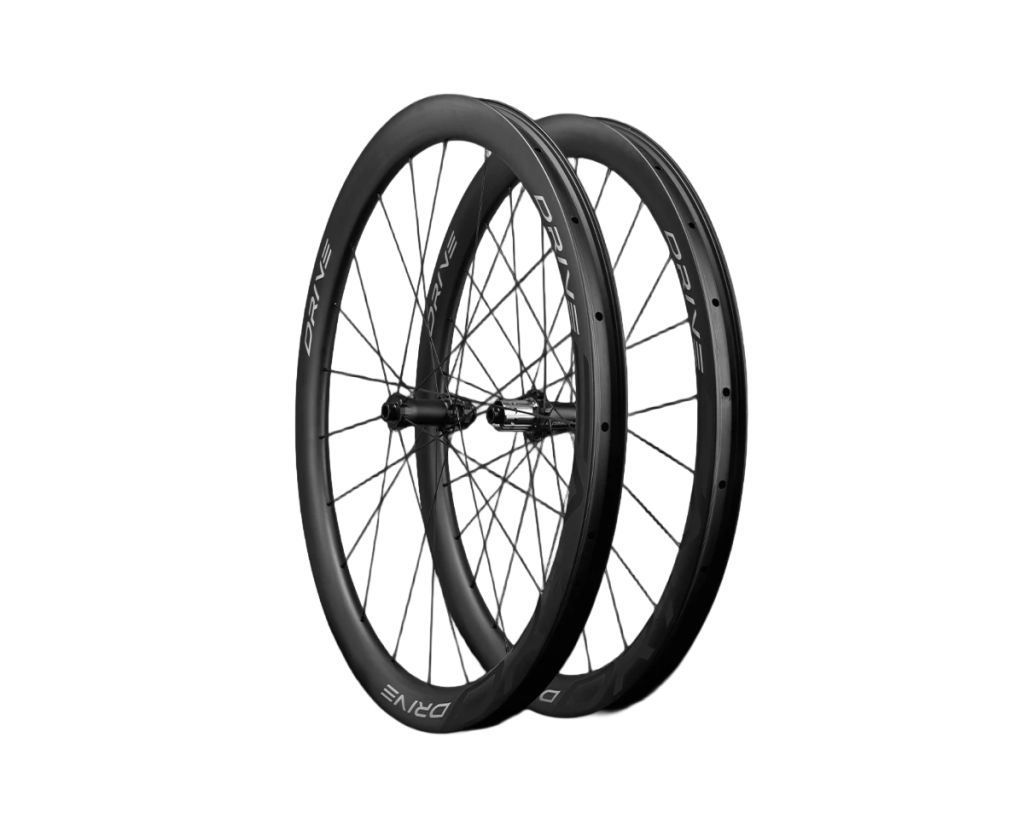

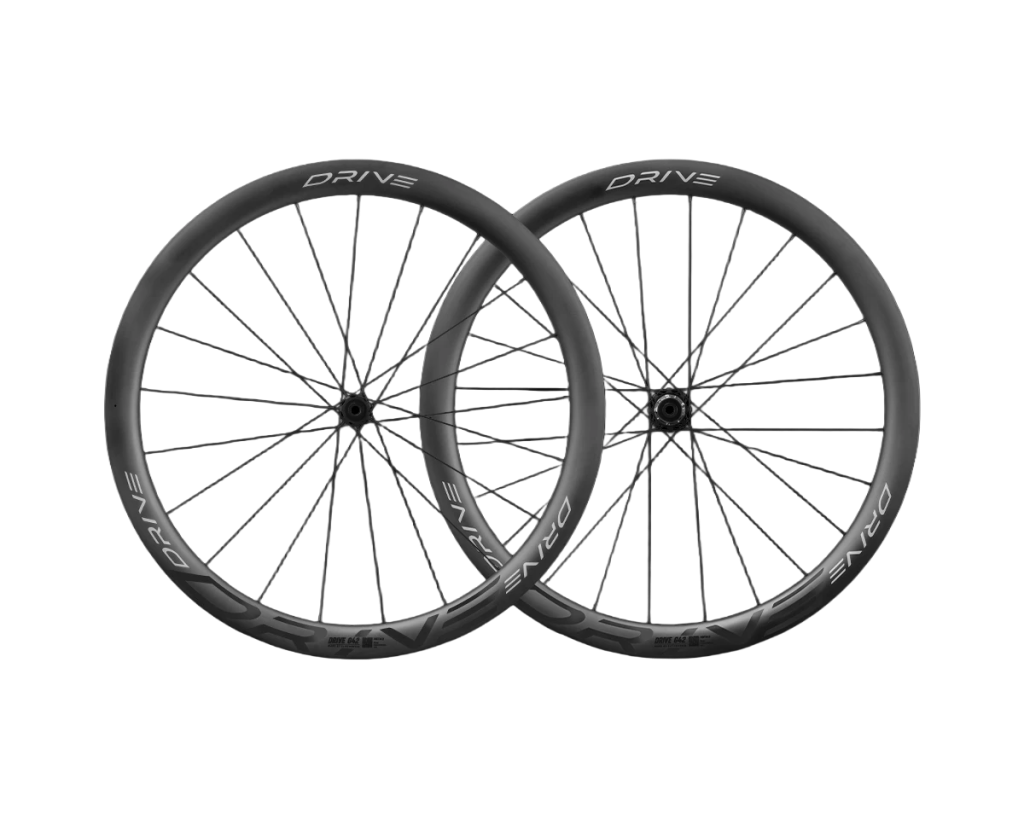

EliteWheels Drive G42

Designed specifically for Gravel terrain, the Drive G42 is centered around a 28mm super-wide internal width, a one-piece titanium driver body, and precise tension control. It achieves an optimal balance between weight, stability, and compatibility, offering a truly trustworthy companion for Gravel riders who seek reliability and the joy of exploration.

As new — tires were only mounted and removed once for a photoshoot. Sold as a display item

Available on July 20

– Intended Use: Gravel
– Steel Spoke Wheelset
– Disc Brake Wheelset
– Brake Interface: Center Lock by default
– Axle: Thru axle by default

28mm Internal Width

Wide Tire Compatibility with Enhanced Safety

The Drive G42 features a 28mm internal width design, perfectly compatible with a wide range of Gravel tires from 40-60C. The larger internal width provides a better tire support profile, significantly reducing the “lightbulb effect” after inflation and delivering stronger sidewall support during cornering and on rough terrain. Additionally, the rim features a hooked bead design, effectively preventing tire blow-off during aggressive riding or low-pressure use, thereby enhancing overall safety—making every gravel descent more composed and confident.

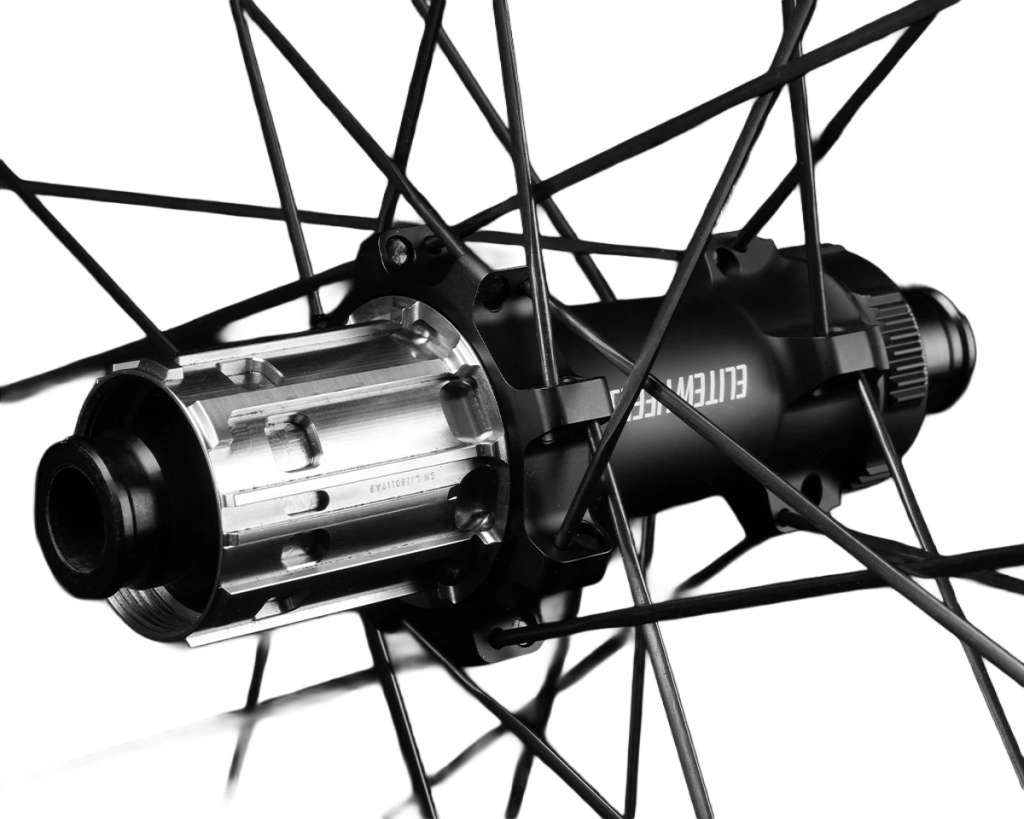

One-Piece Titanium Freehub Body (60T / 6°)

A Engineering Breakthrough in Lightness and Reliability

The Drive G42 introduces a premium titanium Freehub body. Leveraging the material’s natural corrosion and impact resistance, it significantly extends the wheelset’s service life in harsh conditions. Elitewheels has overcome the thermal management challenges of titanium processing to machine the drive teeth and driver body as a single, integrated structure. This design not only further reduces the weight of the ratchet system but also fundamentally eliminates the risk of loosening, delivering direct and decisive power transfer. This rare manufacturing standard brings immediate and responsive power delivery to Gravel riding.

Discover the Hub Sound Here

Tension Difference ≤7kgf + Steel Spoke Optimization

Wider Internal Width, Greater Stability

The Drive G42 features Alpina Ultralite Aero steel spokes, with the tension difference between both sides of the hub precisely controlled within ≤7kgf. This is far superior to the ≥15kgf commonly seen in most 2:1 spoke pattern products on the market. Spoke tension is more evenly distributed, resulting in less deformation and greater stability under dynamic loads—ensuring long-term reliability. At the same time, as a steel-spoke wheelset, the Drive G42 achieves a larger internal width and wider tire compatibility while maintaining a satisfyingly lightweight design. The improved tire inflation profile delivers enhanced comfort and lateral support, so long-distance Gravel riding no longer means compromise.

Testing & Validation

Beyond the Lab, On the Road

Each Drive G42 wheelset undergoes over 20 laboratory tests at our factory, covering durability, longevity, and stiffness. Furthermore, every wheelset passes the UCI Vertical Impact Test—certifying it for top-tier professional racing.

RimSeries Drive

Wheel Size 700c

Tire Compatibility Clincher/ Tubeless

Bead Type Hooked

Rim Depth 42mm

Inner Width 28mm

Outer Width 36mm

OtherRim Finish UD Semi – matte

Extras Rim Tape(Installed), Tubeless Valves(Installed)

Weight (Pair) 1380±30g(without tubeless valves and rim tape)

Rider Weight Limit 270lbs/120kg

Compatible Tire Sizes 700 x 40-60C

Recommended Tire Sizes 700 x 40C

HubFront Hub Spacing 12x100mm

Rear Hub Spacing 12x142mm

Bearing TPI Steel

Brake Compatibility Disc (Center Lock)

Freehub Type 60T Ratchet

Freehub Compatibility Shimano HG / SRAM XDR / Shimano MS

SpokeFront Spoke Pattern 3X/Radial (2:1)

Rear Spoke Pattern 1X/3X(1:2)

Spoke Count 21F/24R

Spoke Type Alpina Ultralite Aero

Nipple Type Sapim Secure Lock
